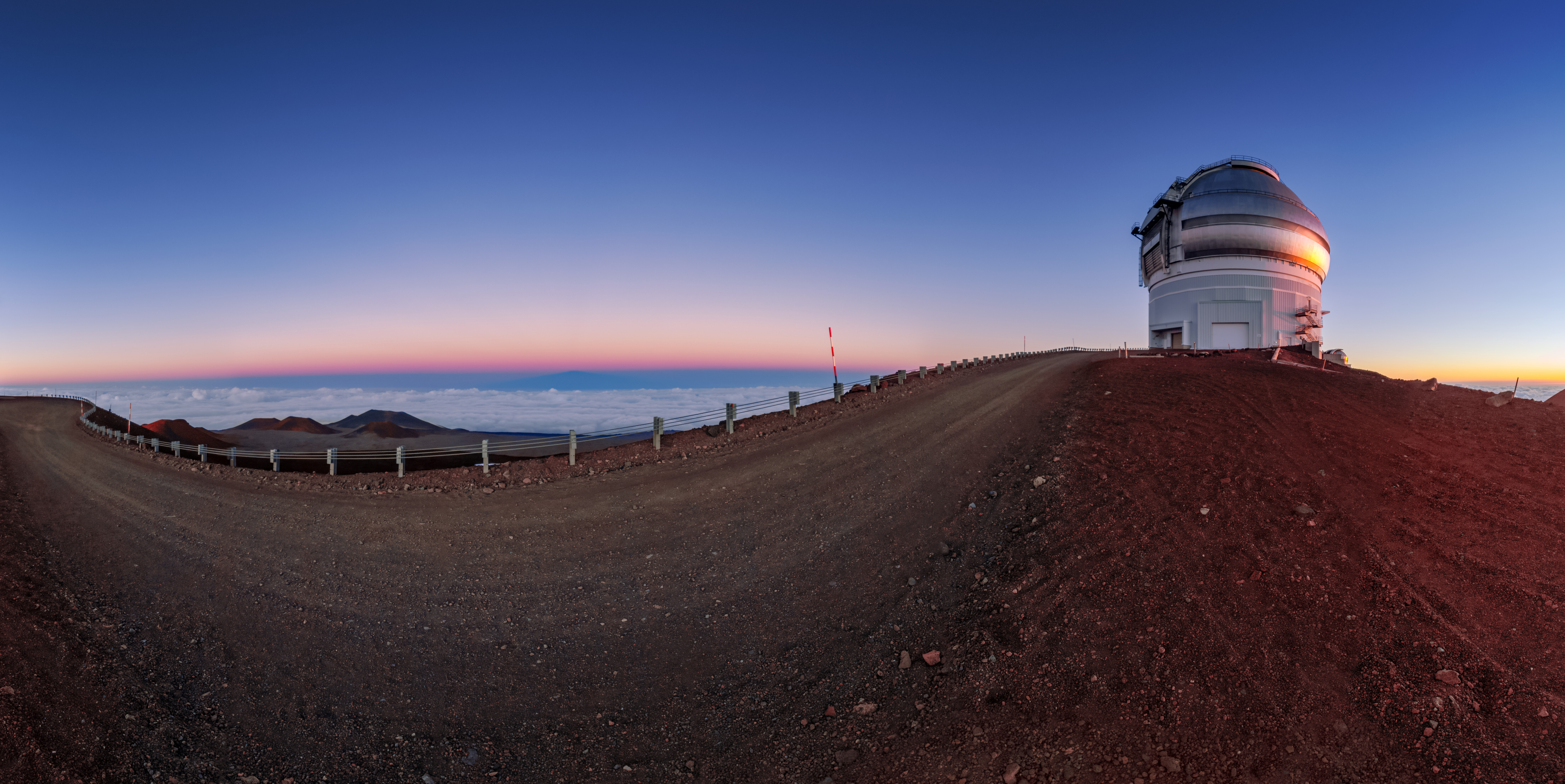

The silver dome of the Gemini North telescope, one half of the International Gemini Observatory, operated by NSF’s NOIRLab, catches the setting Sun, caught between the red-hued earth of the Maunakea volcano and an inky-blue sky. The scale of astronomical infrastructure can be difficult to grasp from images, particularly when telescopes are located in vast landscapes under wide skies. However, if you look closely the staircases winding up the side of Gemini North are visible — revealing the true size of this telescope. The dome of Gemini North — and that of its twin, Gemini South in Chile — is around 46 meters (150 feet) across, meaning that the two telescopes side-by-side would almost fit in an entire soccer field!This photo was taken as part of the recent NOIRLab 2022 Photo Expedition to all the NOIRLab sites.
The silver dome of the Gemini North telescope, one half of the International Gemini Observatory, operated by NSF’s NOIRLab, catches the setting Sun, caught between the red-hued earth of the Maunakea volcano and an inky-blue sky. The scale of astronomical infrastructure can be difficult to grasp from images, particularly when telescopes are located in vast landscapes under wide skies. However, if you look closely the staircases winding up the side of Gemini North are visible — revealing the true size of this telescope. The dome of Gemini North — and that of its twin, Gemini South in Chile — is around 46 meters (150 feet) across, meaning that the two telescopes side-by-side would almost fit in an entire soccer field!This photo was taken as part of the recent NOIRLab 2022 Photo Expedition to all the NOIRLab sites.

Gemini Observatory

astronomyscienceinternational-cooperationhawaii
4 min read

Most observatories have a blind spot. Build a telescope in the northern hemisphere and you cannot see the southern sky; build in the south and the north is lost. The Gemini Observatory solved this problem by building two identical 8.1-meter telescopes on opposite sides of the equator -- one on Mauna Kea in Hawaii, the other on Cerro Pachon in the Chilean Andes. Together, they cover every patch of sky except two tiny circles around the celestial poles, giving six partner nations an unbroken view of the universe for roughly $187 million in construction costs.

Mirrors Born in Upstate New York

Each Gemini mirror blank weighs over 24 short tons and was fabricated from Corning's Ultra Low Expansion glass at the company's Canton Plant in upstate New York. The blanks were built by fusing and then sagging a series of smaller hexagonal pieces into a single monolithic disc -- a process that required exacting temperature control over weeks. Once formed, they were shipped across the Atlantic to REOSC, a French optical firm south of Paris, for final grinding and polishing. A cost-saving decision during design eliminated the two Nasmyth platforms that most large telescopes use to mount heavy instruments, which made building spectrographs and adaptive optics systems considerably more challenging. Every instrument at Gemini must meet strict mass and center-of-mass requirements to keep the telescope balanced as it slews across the sky.

Seeing Through the Blur

Earth's atmosphere scrambles starlight, turning pinpoint stars into shimmering blobs. Gemini fights back with some of the most advanced adaptive optics in operation. At Gemini North, the ALTAIR system -- built in Canada -- uses either a natural star or an artificial laser guide star to measure atmospheric turbulence and deform a flexible mirror hundreds of times per second to cancel it out. The result is a Strehl ratio of 30 to 45 percent, sharp enough to have contributed to the discovery of the exoplanet HR 8799b. At Gemini South, the GeMS system goes further, projecting a constellation of five laser guide stars to measure turbulence across a wider field of view. When it achieved first light in December 2011, it delivered images with a resolution of 0.08 arcseconds in the infrared -- approaching the theoretical diffraction limit of the telescope.

Photographing Other Worlds

The Gemini Planet Imager, or GPI, represents one of the observatory's most ambitious instruments. Built by a consortium of American and Canadian institutions, GPI combines extreme adaptive optics with a coronagraph that blocks a star's overwhelming glare, and an integral-field spectrometer that analyzes the faint residual light. The result: GPI can directly image planets around nearby stars that are one-millionth as bright as their host star. This is not the indirect wobble-detection or transit-dimming that accounts for most known exoplanets. GPI produces actual photographs of alien worlds, resolving them as distinct points of light beside their parent stars. The instrument has been moved between Gemini North and Gemini South, taking advantage of the observatory's unusual design -- because the two telescopes are essentially identical, instruments can shuttle between hemispheres as science demands.

A Partnership Under Pressure

International collaboration has not always been smooth. In November 2007, the United Kingdom's Science and Technology Facilities Council announced plans to withdraw from the Gemini partnership to save four million pounds annually. Public outcry followed, including a "Save Astronomy" campaign that urged citizens to protest the budget cuts. The UK reversed course in February 2008, only to announce again in December 2009 that it would leave for good in 2012. Australia followed in 2015. South Korea joined the partnership in 2018, and the current international agreement -- signed by the United States, Canada, Chile, Brazil, Argentina, and Korea -- runs through the end of 2027. Despite these upheavals, Gemini remains the only public-access 8-meter-class telescope in the United States, providing data for over 400 science projects annually.

From the Air

Gemini North is located at 19.82N, 155.47W on Mauna Kea's summit at approximately 4,200 meters elevation. Its silver-coated dome is visible among the cluster of observatory structures near the peak. Nearest airports: PHTO (Hilo International, 28 nm southeast), PHKO (Kona International, 40 nm west). Gemini South's twin is located on Cerro Pachon in Chile at over 2,700 meters. From the air, Gemini North's dome is distinguishable by its slightly different profile compared to the Keck and Subaru telescopes nearby.
