Juan de Fuca Ridge

geologyoceannatural-featurepacific-northwest
4 min read

In 1874, a Navy sloop called the USS Tuscarora was dragging a sounding line across the Pacific, surveying a route for an undersea telegraph cable to Japan, when the crew discovered a submarine mountain range about 200 miles off Cape Flattery. They noted it and moved on. Compared to the other features they'd charted during the voyage, this ridge seemed unremarkable. It would take another century before scientists understood what they had found: a place where the Earth's crust is being torn in two, where molten rock wells up from the mantle to build new ocean floor at a rate of six centimeters per year. The Juan de Fuca Ridge stretches roughly 500 kilometers off the coast of Washington, Oregon, and British Columbia, a seam in the planet's surface that is both creative and catastrophic -- building new crust with one hand while loading the Cascadia Subduction Zone with destructive potential with the other.

A Plate with a Shrinking Future

Thirty million years ago, the Juan de Fuca Ridge was part of a much larger system, the Pacific-Farallon Ridge, which drove the enormous Farallon Plate eastward beneath North America. Over geologic time, the Farallon Plate was consumed by subduction, breaking apart into smaller remnants. The Juan de Fuca Plate is one of those fragments -- a slab of ocean floor roughly the size of Indiana, wedged between the Pacific Plate to the west and the North American Plate to the east. The ridge creates new crust along its length, but the plate it builds has nowhere to go except down. It slides beneath the continent at the Cascadia Subduction Zone, where it has the capacity to unleash magnitude 9 earthquakes. The last one struck on January 26, 1700, sending a tsunami across the Pacific to Japan. On average, such events recur every 550 years.

Chimneys in the Dark

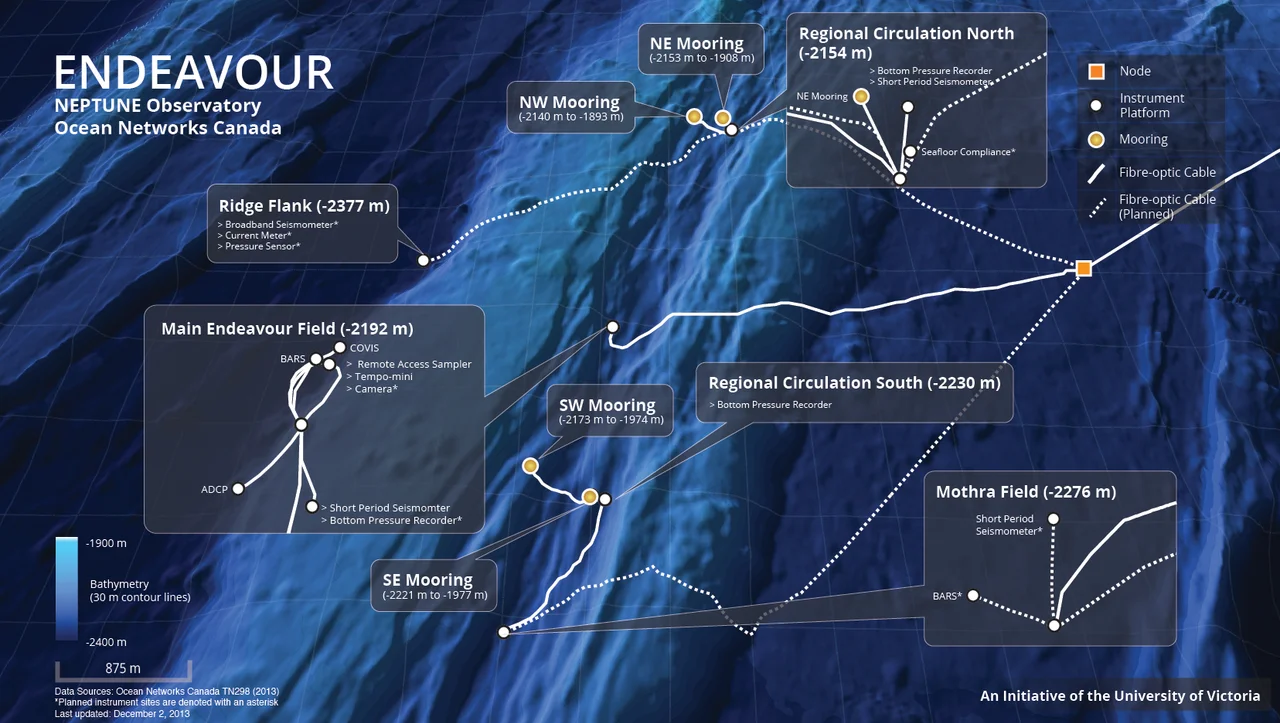

The Endeavour segment, near the ridge's northern end, hosts some of the most intense hydrothermal activity on any mid-ocean ridge. More than 800 individual chimneys have been mapped in the central region alone, clustered across five major hydrothermal fields. Superheated water, loaded with dissolved sulfur and metals, jets from these vents at temperatures that can exceed 300 degrees Celsius. Where this scalding fluid meets the near-freezing seawater, minerals precipitate out, building the chimney structures that give the vents their nickname: black smokers. What thrives here is stranger than the geology. Bacteria at the base of the food chain metabolize sulfur compounds instead of sunlight, fueling entire ecosystems in perpetual darkness -- tube worms, shrimp, and crabs that have never known a photon of light, living at pressures that would crush a human being.

Catching a Volcano in the Act

Scientists have been watching the Juan de Fuca Ridge erupt since 1986, when hydrothermal megaplumes on the Cleft segment revealed the first documented eruption. In June 1993, a 24-day eruption at the CoAxial segment drew research vessels that discovered microbial communities colonizing fresh lava flows. But the real breakthrough came at Axial Seamount, the most active submarine volcano in the northeastern Pacific. Rising 700 meters above the surrounding ridge, Axial sits at a depth of 1,400 meters and is now wired with a cabled observatory as part of the National Science Foundation's Ocean Observatories Initiative. In January 1998, scientists recorded 8,247 earthquakes over 11 days -- the first time an underwater eruption was monitored in real time, with lava flows tracked in situ as they poured from the caldera. When Axial erupted again in 2011, researchers found fresh lava flows burying their instruments. They had predicted the subsequent 2015 eruption based on how fast the caldera floor was inflating as magma refilled the chamber below. It was the first successful forecast of a seamount eruption.

Listening to the Seafloor

You cannot see the Juan de Fuca Ridge. It lies beneath more than a kilometer of cold Pacific water, entirely invisible from the surface and from the air. But the U.S. Navy can hear it. The Sound Surveillance System -- SOSUS -- an array of Cold War-era hydrophones originally designed to track Soviet submarines, now doubles as the ridge's seismograph. The system detects earthquakes and eruptive events in real time, giving scientists an acoustic portrait of the ridge's restless behavior. When swarms of small earthquakes begin rattling a segment, researchers know to pay attention: eruptions typically follow. The ridge is a reminder that the most consequential geology on Earth often happens where nobody can watch -- on the dark, crushing seafloor, at the margins where continents end and new ocean begins.

From the Air

Located at approximately 46.0°N, 130.0°W, about 300 miles west of the Oregon-Washington coast. The ridge is entirely submarine and invisible from the surface, but its position marks the boundary between the Pacific Plate and the Juan de Fuca Plate. Flying westbound from the Pacific Northwest coast, you cross the Cascadia Subduction Zone trench before reaching the ridge's position. The nearest coastal airports are KAST (Astoria, Oregon) and KUIL (Quillayute, Washington) on the Olympic Peninsula. At cruising altitude, the open Pacific stretches featureless in every direction here -- a stark contrast to the tectonic violence unfolding on the ocean floor below.
